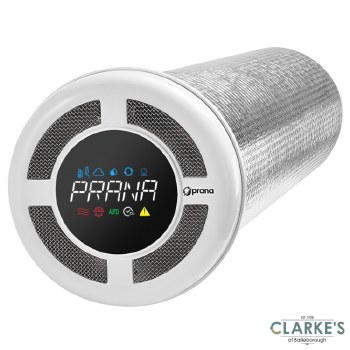

Prana Heat Recovery Ventilation 160 ERP Pro

The PRANA 160 ERP Pro Mini Recuperator is a model from the brand's top-of-the-line series, designed for rooms up to 20 - 25 m2. The PRANA 160 ERP Pro series is equipped with four additional sensors, which allow for maximum information to be obtained. The temperature of the incoming air is measured at two points: at the system's intake and at its delivery into the room. The same applies to exhaust flows. The sensor will indicate the temperature of the air entering the PRANA 160 ERP Pro heat exchanger, as well as the temperature of the air being expelled outside. Additionally, this product line features a Total Volatile Organic Compounds (TVOC) sensor, which is integrated into the system's automatic modes of operation. As a result, PRANA 160 ERP Pro heat exchangers also adjust their air exchange productivity when the level of TVOCs increases, such as with the use of perfumes, household chemicals, new furniture purchases, and renovations.
The PRANA 160 ERP Pro Mini Recuperator includes several advanced features to monitor and control the state and quality of the air. These features include a carbon dioxide equivalent (CO2eq) level sensor, TVOC sensor, display and app notifications on the system's efficiency level (Coefficient of Performance, or COP), air quality change statistics (in the app when connected via Wi-Fi), and tracking of the temperature of incoming and outgoing air before and after heat recovery. The Prana Heat recovery system can be controlled via remote control or mobile app, with WiFi and Bluetooth connectivity.
The PRANA 160 ERP Pro Mini Recuperator has the following specifications:
- Air supply up to 105 m3/h
- Air extraction up to 97 m3/h
- Efficiency level (Coefficient of Performance, or COP) up to 95%
- Heat exchanger material: copper
- Mounting hole diameter: from 162 mm
- Working module length: from 450 mm
- Energy consumption: 4-68 W*h
- Energy efficiency class: A+
- Certification: European CE quality certification
The PRANA 160 ERP Pro Mini Recuperator is a highly efficient heat recovery system suitable for rooms up to 20 - 25 m2. Its advanced sensors and features ensure optimal air quality and productivity while also providing easy control through remote and mobile app interfaces.
ITEM CODE: 2004202312331
